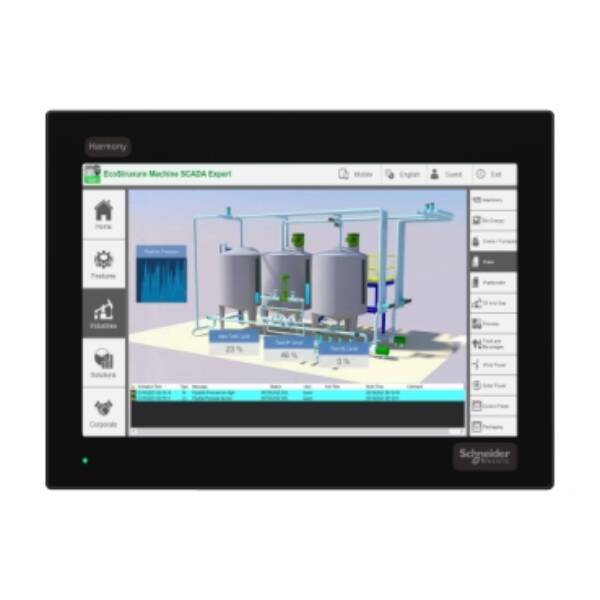

This industrial flat panel monitor belongs to the Schneider Electric's Harmony HMI FP6 range. This 2 point multi-touch projected capacitive HMIFP6 display has a glass-top surface design with backlight service life of 50,000 hours. HMIFP6600WCD is a 12.1 inch wide screen of 16 million colors and 1,280 × 800 pixel resolution (WXGA). Three touch mode configurations are available namely Standard mode, Glove mode, and Water detection mode. The modularity of the FP6 display facilitates fast deliveries, multiple choices, easier mounting, and optimum ergonomics. The front panel when properly installed in an enclosure provides IP66F, IP67F, Type 1, Type 4X (NEMA indoor use only), and Type 12 and Type 13 degree of protection. The power consumption when this FP6 display is paired with Modular Boxes is 15.9Wmax. Its dimensions are 308.5mm (width) x 230.5mm (height) x 67.5mm (depth) and weighs 3.90Kg. Harmony FP6 industrial Flat Panel Monitor caters to the complex machine, line monitor and processes at Edge Control and Apps Analytics level of EcoStruxure. It complies with CE, RCM, UL 61010-2-201, UL 121201, and CSA C22.2 No. 61010-2-201, CSA C22.2 No. 213, IECEx/ATEX for use in Zone 2 gas/Zone 22 dust. This display when combined with any of the Harmony P6, Harmony iPCs, or third-party Boxes makes a Panel PC. It can be mounted on front enclosure or VESA 100 × 100 mount on the rear of Box PC. The stylish wide Harmony FP6 displays provide high visibility during operation featuring glass-top capacitive multi-touch panel with narrow frame and thin design.

Brand

Schneider Electric

Range

Harmony FP6

Part No

HMIFP6600WCD

Weight (kg)

3.09 kg

Type

Harmony FP6

Supporting protocol for SERCOS

FALSE

Number of HW-interfaces other

1

Number of HW-interfaces USB

1

Radio standard GPRS

FALSE

Height

230.5

Supporting protocol for INTERBUS-Safety

FALSE

Width

308.5

Supporting protocol for AS-Interface Safety at Work

FALSE

Radio standard GSM

FALSE

Radio standard UMTS

FALSE

Depth

67.5

Construction type housing

Other

Supporting protocol for DeviceNet Safety

FALSE

Supporting protocol for EtherNet/IP

FALSE

Supporting protocol for Foundation Fieldbus

FALSE

Operation temperature

-20…60 °C

Supporting protocol for SafetyBUS p

FALSE

Suitable for other operating system

TRUE

Voltage type of supply voltage

DC

With other storage media

FALSE

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

FALSE

With floppy disc drive

FALSE

Supporting protocol for PROFIsafe

FALSE

Supporting protocol for ASI

FALSE

Radio standard Bluetooth

FALSE

Radio standard WLAN 802.11

FALSE

Supporting protocol for PROFIBUS

FALSE

Front build in possible

TRUE

Supporting protocol for KNX

FALSE

Supporting protocol for CAN

FALSE

With graphic card

FALSE

With hard disc

FALSE

Degree of protection (IP)

IP67

With sound card

FALSE

Supporting protocol for INTERBUS

FALSE

IO link master

FALSE

With optical drive

FALSE

Supporting protocol for DeviceNet

FALSE

Rail mounting possible

FALSE

Suitable for safety functions

FALSE

Supporting protocol for MODBUS

FALSE

Supporting protocol for Data-Highway

FALSE

Supply voltage DC

18…31.2 V

Rack-assembly possible

FALSE

Preinstalled operating system

None

Supporting protocol for LON

FALSE

Supporting protocol for other bus systems

FALSE

Supporting protocol for SUCONET

FALSE

Wall mounting/direct mounting

TRUE

Degree of protection (NEMA)

4X
